Mini Split Condenser Legs
  • Mini Split Condenser Legs
  • Mini Split Condenser Legs
  • Mini Split Condenser Legs
  • Mini Split Condenser Legs
  • Mini Split Condenser Legs
  • Mini Split Condenser Legs
Mini Split Condenser Legs

Mini Split Condenser Legs

A/C UNIT SUPPORT

$160.00
Size

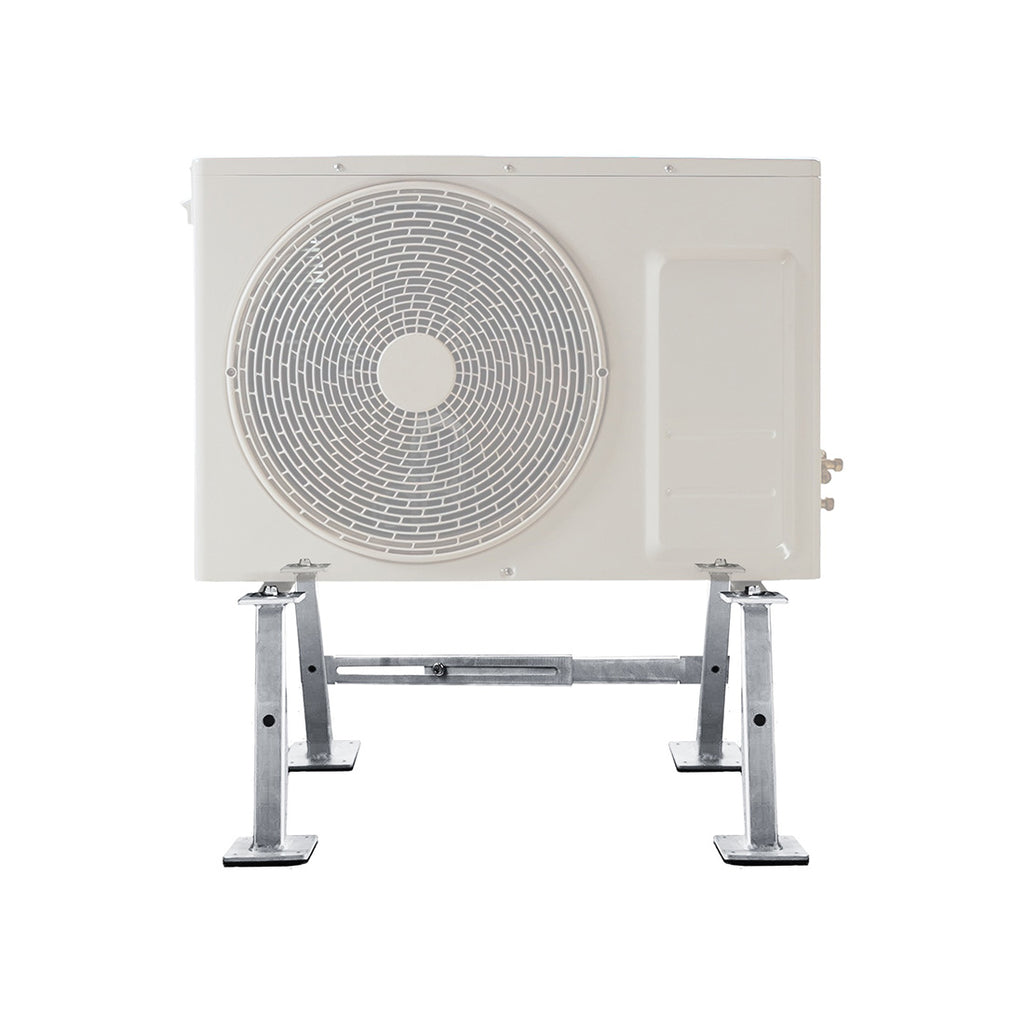

The Condenser Legs are an outdoor support unit designed to securely hold your mini split condenser above ground level – protecting it from dirt, debris, and water damage. Built with adjustable components, it fits all standard units and installs easily with minimal tools.

INSTRUCTIONS
FEATURES
  • Loading weight up to 500lbs
  • Made with rust-free aluminum
  • The entire unit comes in minimal packaging reducing waste and weight on your job site
  • Includes rubber absorbers on the bottom of each leg
SPECS

Product Type: Legs

Finish:  Aluminum

Width: Adjustable

Height: 12in or 18in

Weight: Up to 500lbs

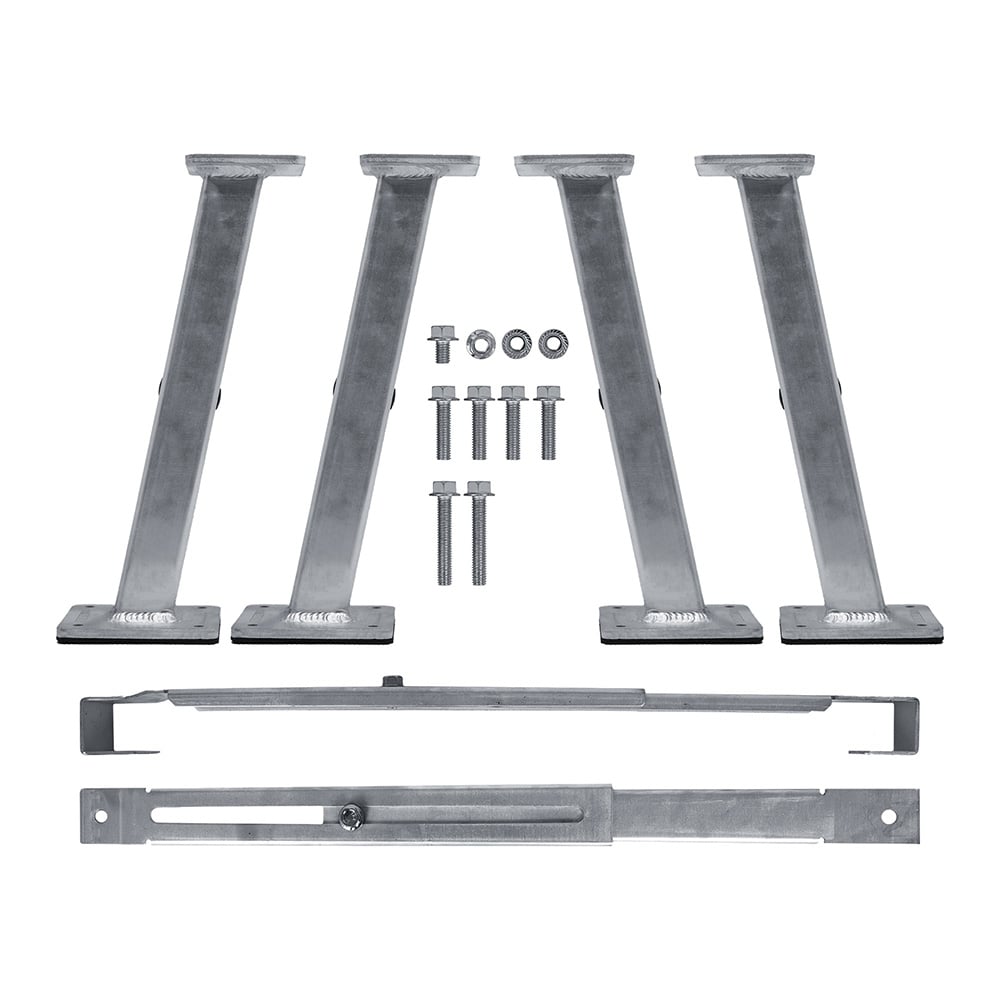

INCLUDES

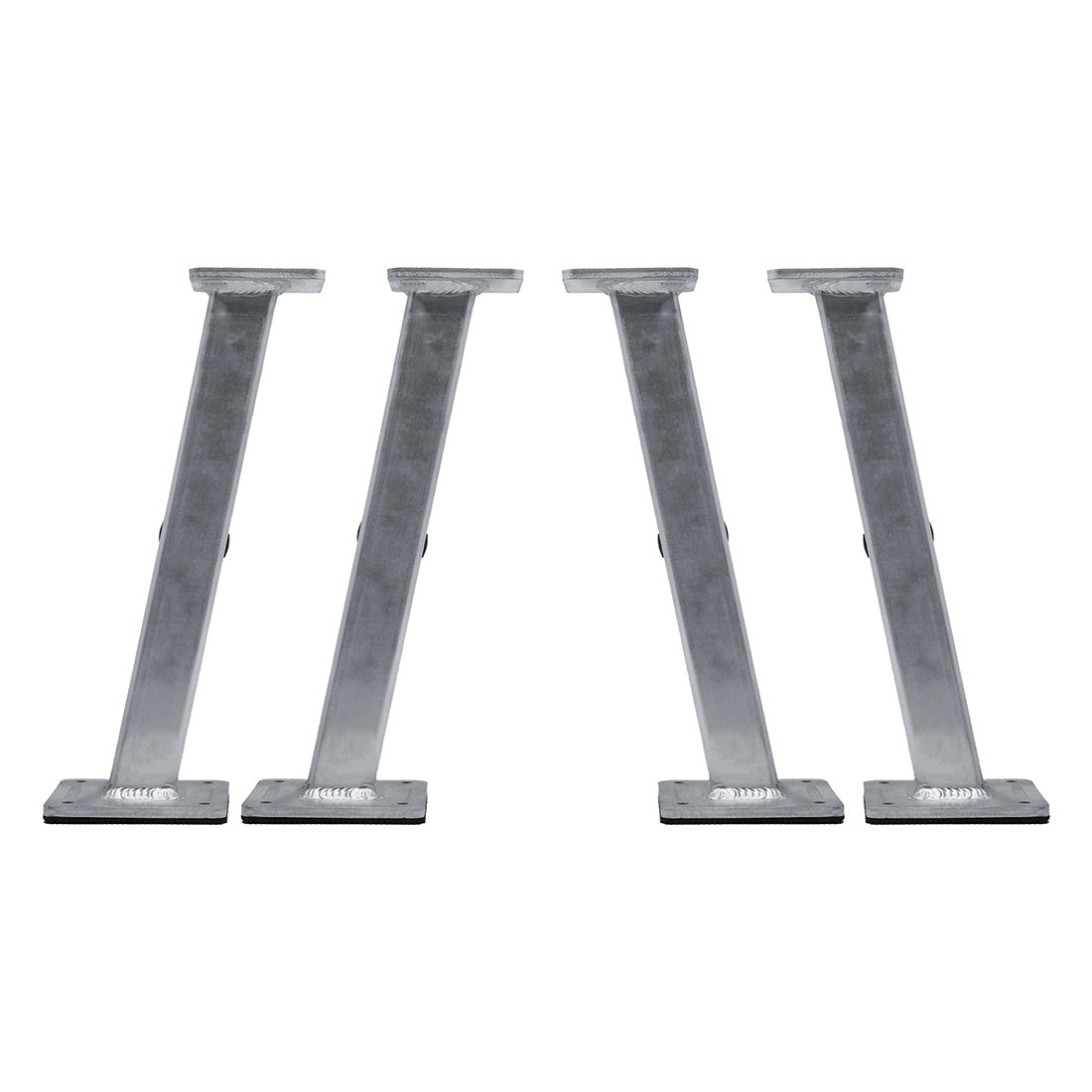

  • (4) Legs
  • (1) Bracket

Stainless Hardware:

  • (4) 3/8 x 11/2 Bolts
  • (2) 3/8 x 2 Bolts
  • (1) 3/8 x 1/2 Bolt
  • (3) 3/8 Nuts
  • (4) Plugs
  • Installation Instructions

INSTRUCTIONS

BEFORE YOU BEGIN

Prepare a hard, level surface for the installation site.

Two people are recommended for safe and easy assembly.

  • One person should tilt the unit while the other attaches the legs.
  • This helps keep the unit stable and prevents damage or injury.

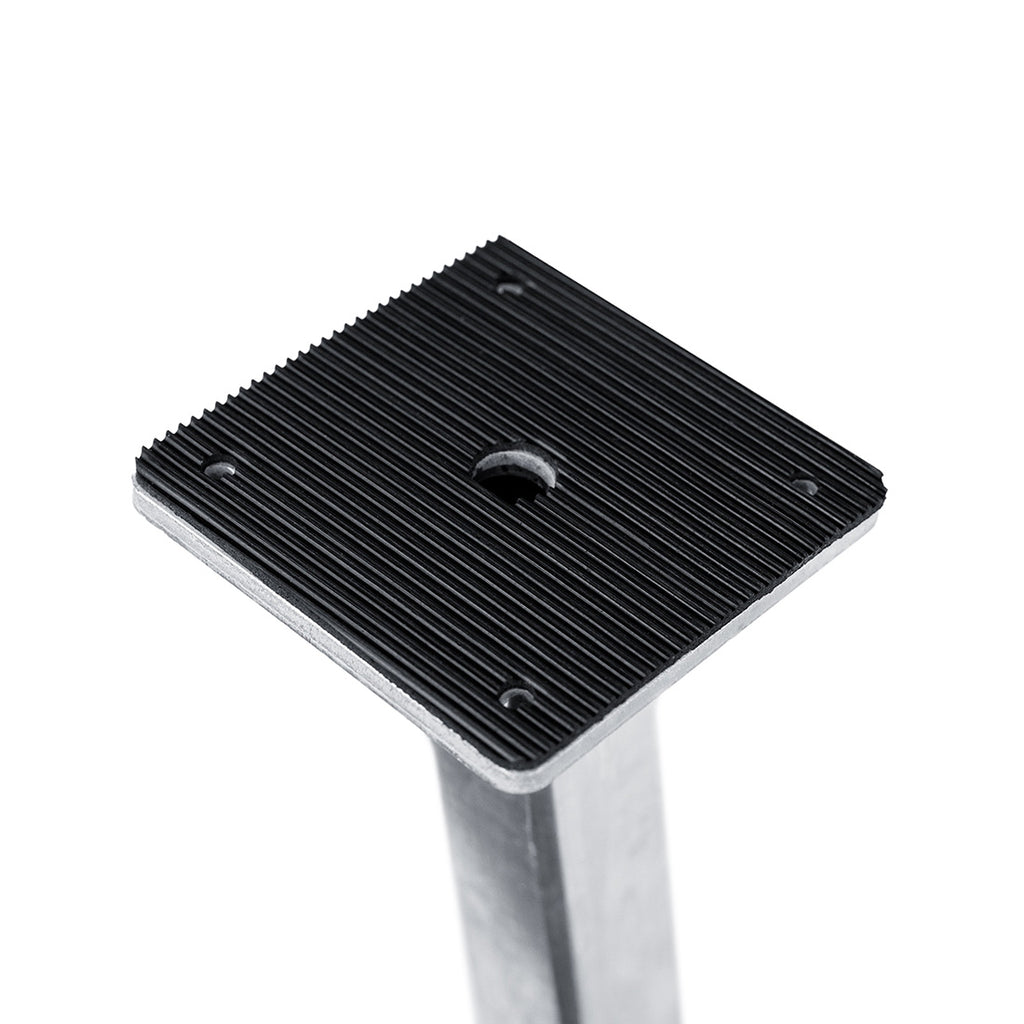

The bottom of each leg is designated by a rubber pad.

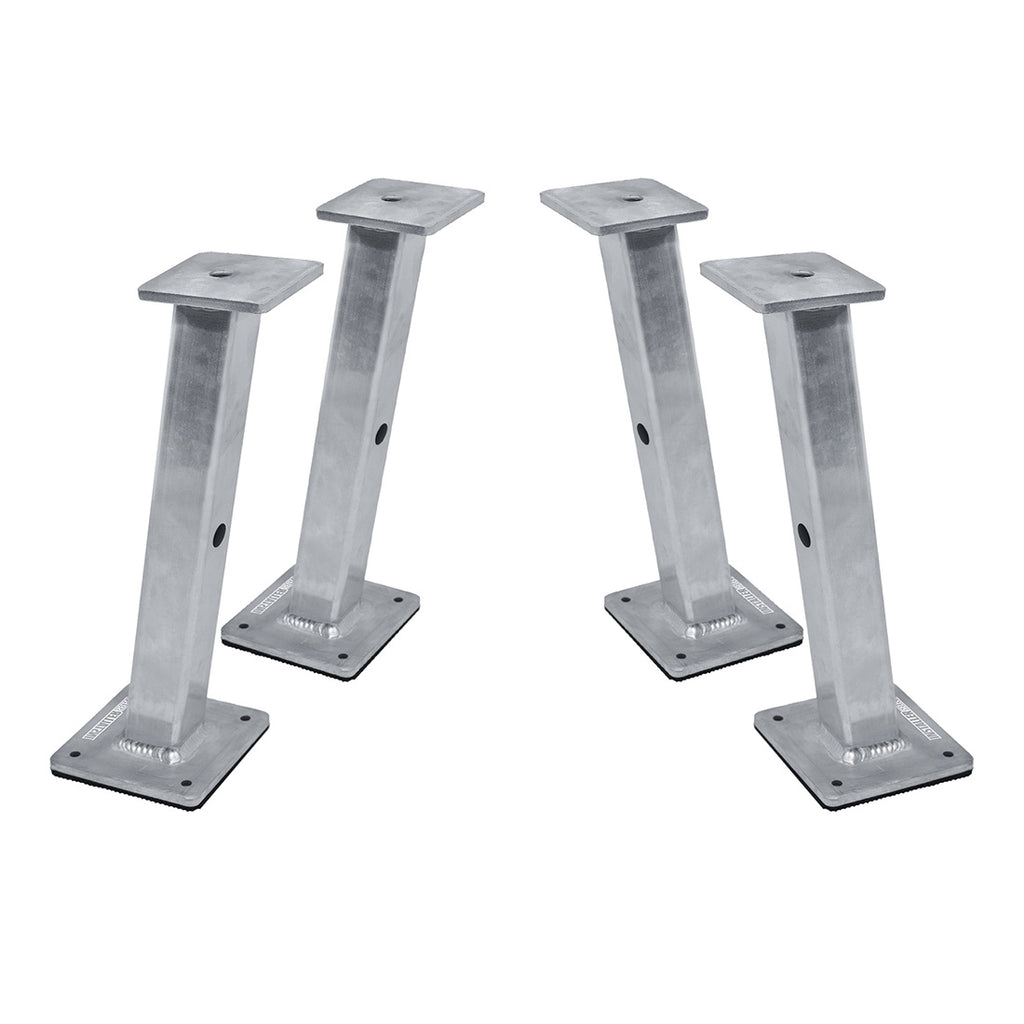

Notice that each leg is angled. When attached, the bottom of each leg should point outward like this: / \

Pad Size Calculator

Due to the outward angle of the legs:

For 12" Single Legs - Add 9" to the unit's depth.

For 18" Single Legs - Add 11" to the unit's depth.

Pad width should be at least equal to the unit's width.

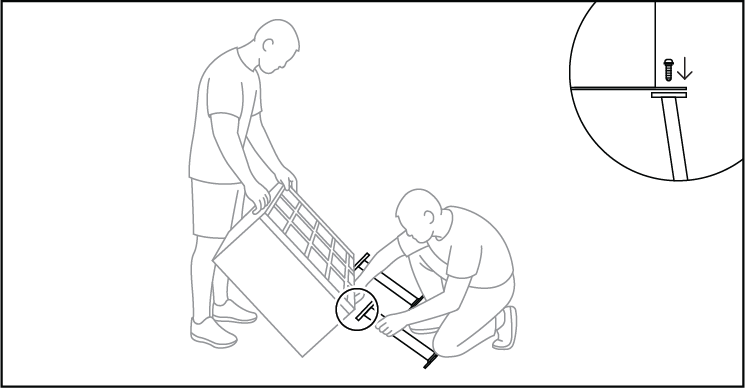

STEP 1 - ATTACH THE BACK LEGS

  1. Lean the unit forward as one person supports it.
  2. Attach two of the Legs to the unit, tightening the attached bolt with a ratchet or wrench.

Ensure that the bottom of the Legs are angled towards the outside of the unit.

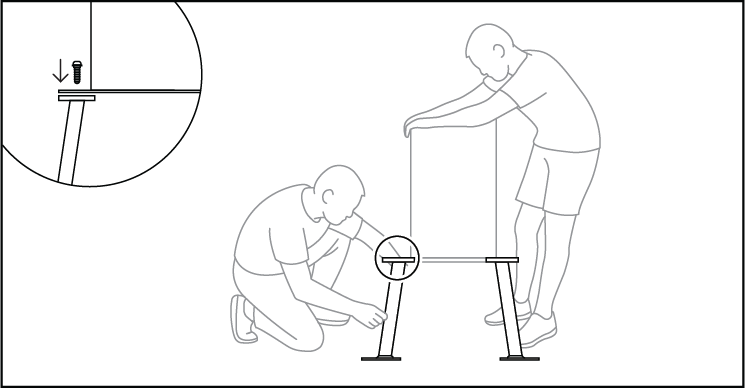

STEP 2 - ATTACH THE FRONT LEGS

  1. Lean the unit back upright.
  2. Attach the remaining two Legs, tightening the attached bolt with a ratchet or wrench.

Ensure that the bottom of the Leg is angled towards the outside of the unit.

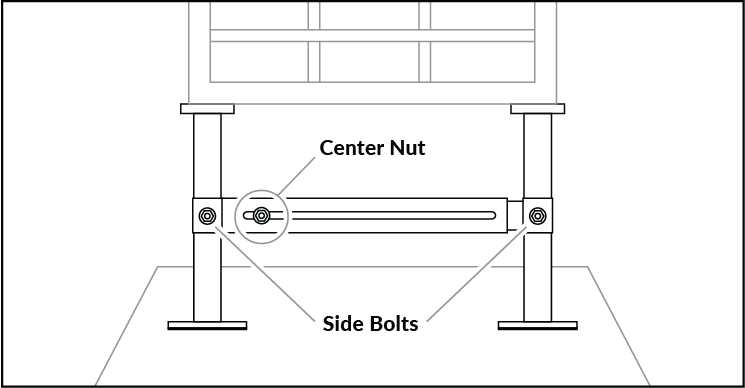

STEP 3 - ATTACH THE BACK BRACKET

  1. Slide the Back Bracket between the 2 back Legs. Use the Center Nut to adjust its length until the legs are evenly spaced and firmly secured.
  2. Bolt each side of the Back Bracket to a Leg with the Bolts using a ratchet or wrench.

Make sure all bolts and the center nut are fully tightened.

Once secure, gently lower the unit back into position.

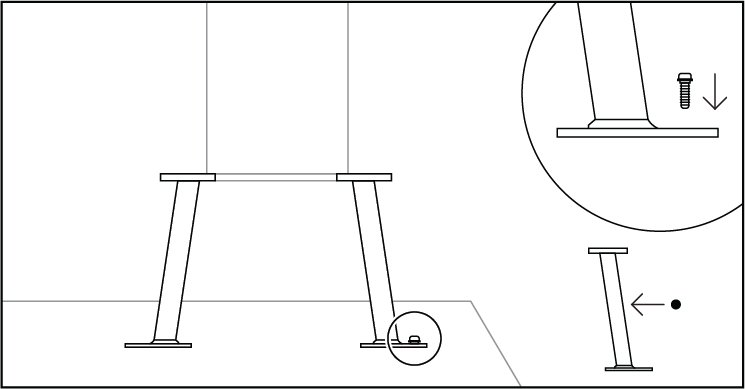

STEP 4 - DRILL INTO PLACE

  1. Drill all 4 Legs into platform of choice.
  2. Use material specific screws correctly (screws not included).
  3. Insert a Plastic Plug into the hole at the front of each leg.
